Setup Guide

The settings menu is a menu for configuring file control policies that apply to the entire organization and the use-file-Works options. Changes to the settings will be applied to all users after saving. The settings menu consists of the tabs below.

  • Basic Settings / Usage Settings / File Management / SHIELD Drive Works
  • The SHIELD Drive Works tab is only displayed when using Works.
  • Administrators without write permissions can only view and cannot change or save items.

1. Basic Settings​

Set access control for viewing, editing, uploading, and downloading files by channel for users. (The existing "Policy" menu has been moved to this tab.)

  • Each permission is set to allow or block with a switch.
  • If file viewing is blocked, file editing will be automatically blocked.

1-1. SHIELD Drive Basic Settings​

Set the file permissions that apply when the user directly accesses the SHIELD Drive.

PermissionWhen accessing directly from a PCWhen accessing directly from mobile
File Viewingconfigurableconfigurable
File EditingConfigurable (Automatically block when viewing is restricted)Configurable (Automatically block when viewing is restricted)
File Uploadconfigurableconfigurable
File Downloadconfigurableconfigurable

1-2. Teams Integration Basic Settings​

Set file permissions applied when using the SHIELD Drive App and Tab linked with Teams. (Visible only to companies where the master administrator has enabled MS integration)

PermissionTeams WebLocal Teams AppMobile Teams
File Viewingconfigurableconfigurableconfigurable
File EditingConfigurable (Automatically block when viewing is restricted)Configurable (Automatically block when viewing is restricted)Configurable (Automatically block when viewing is restricted)
File Uploadconfigurableconfigurableconfigurable
File DownloadconfigurableconfigurableBlocked according to Microsoft Teams policy

Note - When using the security level feature: The setting to allow the upload of files without a designated level can only be configured when file uploads are enabled. (Refer to the "Enable" tab for control of files without a designated level)


2. Settings​

Set the options for sharing-viewing-grade-Microsoft Teams integration. Some items will be displayed depending on the company's feature usage.

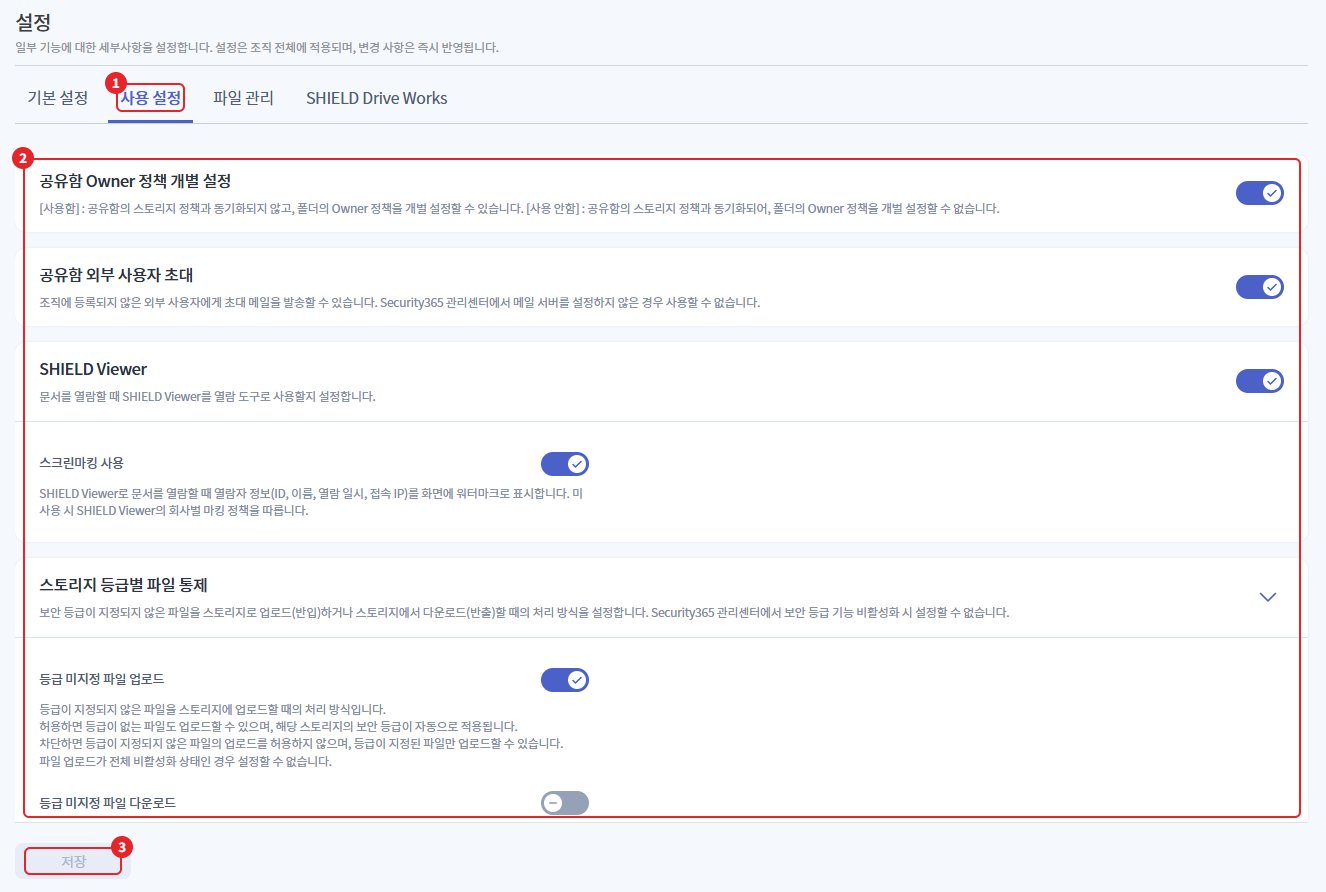

사용 설정 탭 화면 구성

numberitemExplanation
1Settings TabShare · View · Rating · Teams Integration Usage Options Settings Tab
2Settings ItemItem-specific usage switch. Some items are displayed depending on the company's feature usage.
3SaveApply changed items

The display conditions by item are as follows.

itemDisplay Conditions
Shared Folder Owner Policy Individual SettingsAlways display
Inviting external users to the shared folderAlways display (disabled when mail server is not configured)
SHIELD ViewerAlways display. Subscreen marking can only be changed when using SHIELD Viewer (disabled if not in use)
File Control by Storage GradeWhen using the security level feature
Microsoft Teams IntegrationWhen using MS integration
Microsoft Teams NAS IntegrationUsing MS integration + when the master administrator has set up Teams NAS
  • The changed items will be applied after clicking the save button below.

2-1. Shared Folder Owner Policy Individual Settings​

Set the synchronization status between the storage policy of the shared drive and the Owner policy of the shared folder.

OptionAction
useThe folder's Owner policy can be set individually regardless of the storage policy.
Not in useThe folder's Owner policy is always synchronized with the storage policy.

2-2. Inviting External Users to the Shared Folder​

Set whether to allow sending invitation emails to share with external users not registered in the organization.

OptionAction
useAllowing External User Invitations
Not in useExternal User Invitation Restrictions

Caution - Mail server configuration required: If the mail server (SMTP) is not configured in the Security365 management center, the switch will be disabled and unavailable for use.

2-3. SHIELD Viewer​

Set whether to use SHIELD Viewer as the viewing tool when accessing the document. When you expand the SHIELD Viewer card, the screen marking items will be displayed below, and they can only be changed if SHIELD Viewer is set to be used.

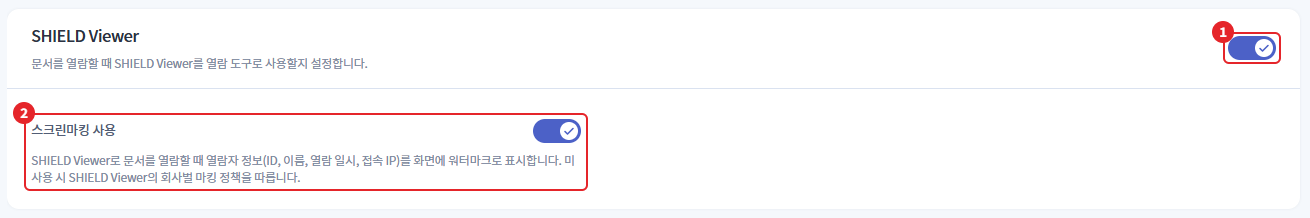

SHIELD Viewer와 스크린마킹 사용

numberitemExplanation
1SHIELD ViewerWhether to use SHIELD Viewer when viewing documents
2Screen MarkingMark the viewer information on the screen when viewing documents with SHIELD Viewer. Can only be changed when using SHIELD Viewer (disabled if not in use).

The viewer information displayed on the screen when using screen marking is as follows.

Marking ItemsContent
IDViewer Account ID
nameViewer Name
Viewing Date and TimeTime the document was opened. Same as the time recorded in the viewing log.
Access IPViewer's access IP
  • The default for screen marking is disabled.
  • When you switch off the SHIELD Viewer, the screen marking items are disabled, and any unsaved screen marking changes revert to their original values.

2-4. File Control by Storage Grade​

Set the handling method for importing and exporting files that are not assigned a security level (unclassified) to and from the classified storage. (Exposed when security level feature is enabled)

SettingsWhen set to allowWhen blocking
Upload of Unrated FilesFiles without a grade can also be uploaded. When uploaded, the same security grade as the storage is automatically assigned.Only files with a specified grade can be uploaded.
Download Unrated FileAllowing the download (export) of files without a gradeBlocking the download of files without a grade
  • Both settings have a default value of block.
  • If upload-download is disabled, the corresponding unspecified settings will also be disabled.
  • The import-export of documents with designated grades is controlled by grade comparison (downward blocking) regardless of this setting.

Caution - Unsupported Extensions: Files in formats that cannot have a security level assigned will follow the same settings as unclassified files. If set to allowed, they will pass without classification.

2-5. Microsoft Teams Integration​

When creating a team-channel in Microsoft Teams, set whether to automatically create SHIELD Drive folders and tabs. (Displayed when using MS integration)

(Image to be attached later)

itemExplanation
Automatic Creation of Teams TabWhen a team/channel is created in Teams, a SHIELD Drive team/channel folder and tab are automatically created.
  • The default value is enabled.
  • If set to disabled, folders and tabs will not be automatically created when creating teams/channels.

2-6. Microsoft Teams NAS Integration​

Set the name of the NAS tab to be added to the Microsoft Teams channel and configure the default NAS storage. (This will only be exposed if the master administrator has set the company's Teams NAS to be used, refer to the master administrator guide)

(Image to be attached later)

itemRequired 여부Explanation
Automatic Creation of Teams NAS Tab-When you create a channel in Teams, a tab for the NAS storage designated as the file storage will be automatically created.
Teams tab nameRequired when using auto-generationThe name displayed on the Microsoft Teams channel tab. When not using the automatic creation of the Teams NAS tab, if not entered, the default name 'SHIELD Drive' will be displayed.
File StorageRequired when using auto-generationDefault NAS storage to be used when adding a NAS tab to a Microsoft Teams channel. When the Teams NAS tab is automatically created, team and channel folders will also be created in this storage.

Setting Method:

  1. Select whether to enable automatic creation of the Teams NAS tab.
  2. Enter the name of the Teams tab. It is required when using the automatic creation of the Teams NAS tab, and can be left blank if not used.
  3. Select NAS storage in the file save storage selection box. Using the automatic creation of the Teams NAS tab is required.
  4. Click the save button to apply the settings.

Screen guidance message:

itemLocationGuide text
Teams tab nameInput Field ExampleSHIELD Drive
Teams tab nameRight description of the input fieldThe entered name will be displayed in the Microsoft Teams channel tab. If not entered, the default name 'SHIELD Drive' will be displayed.
File StorageSelection BoxPlease select a repository
Teams tab name / File storage storageWhen using auto-generation and it is empty (error below the input field)This field is required. / This selection is required.
  • The file storage selection list displays only the storage currently in use among the NAS-secure NAS storage with the purpose of Teams folder. (For storage registration, refer to the storage management guide.)

Note - Required Fields: When the automatic creation of the Teams NAS tab is enabled, the Teams tab name and file storage are required. If left empty, an error will be displayed below the input field and the save button will be disabled. If automatic creation is not used, it can be saved while left empty.

Note - Save failed: If the selected storage has been deleted, is in an unused state, or is a NAS that is not for Teams folder use, the reason for the save failure will be displayed. Please check the storage status and select again.


3. File Management​

Set up automatic file deletion and blocked upload extensions.

3-1. Personal File Deletion Cycle​

Set the automatic deletion cycle for files uploaded to personal storage.

itemExplanation
Deletion Criteria DateSelect between creation date or modification date
Deletion CycleInput a number greater than or equal to 1 (in days)
Deletion MethodChoose to move to the trash or permanently delete.
Personal Vault to SetSelect the secure storage vault to apply automatic deletion

How to specify a personal folder to set:

  1. Switching to using the personal file deletion cycle.
  2. Click the personal space to set.
  3. Search for or select the personal items to apply in the drawer. (Select/Deselect all possible)
  4. When you click the selection button, the selected personal storage will be displayed in chip form in the body.
  5. Click the save button to apply the settings.
  • Unspecified personal folders are not subject to automatic deletion even if a deletion cycle is set, and they are displayed in the user folder list with a retention period of "No retention period limit."
  • Storage with a general saving method is excluded from the selection list.
  • The designated personal folder's 1depth folder can be individually excluded by the user using the automatic deletion exception toggle in the folder details.

Caution

  • If you cancel without saving, the changes will not be applied.
  • Switching to disabled will also deactivate the personal space you set up.
  • Administrators without write permission cannot make changes.

3-2. Registering Blocked File Extensions​

Blocks file uploads of specific extensions. The blocked extensions apply equally to all users.

  1. Enter the extension to block. (Only lowercase letters and numbers are allowed)
  2. Click the add button.
  3. Click the save button to apply the settings.

Caution - Please ensure that essential file extensions are not blocked.


4. SHIELD Drive Works​

Uploads and manages the SHIELD Drive Works agent-patch installation file. (Displayed when using Works)

4-1. Uploading the Agent Installation File​

Uploading the SHIELD Drive Works agent installation file (.exe). The revision will automatically increase upon upload.

4-2. Patch File Upload​

Uploading the SHIELD Drive Works patch file (.exe).
